Mondis Monitor Air Quality

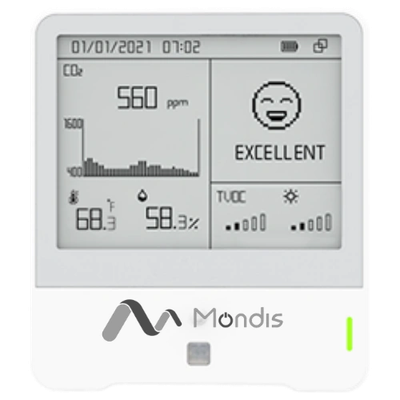

Mondis Monitor Air Quality Mini

Mondis Monitor Air Quality Mini is a service that uses a compact and efficient indoor air quality monitoring device designed to measure key environmental parameters such as temperature, humidity and carbon dioxide (CO2). This device is perfect for ensuring a healthy and comfortable indoor atmosphere in various settings such as offices, schools, homes, and public buildings.


Device main features:

  • Simultaneous measurement of several environmental parameters;
  • Up to 5 years of operation with a replaceable battery
  • Operates in extreme temperatures from -20°C to +50°C
  • 2.13-inch Black & White E-Ink display and Status light

Mondis Monitor Air Quality Advanced

Mondis Monitor Air Quality Advanced is a service that uses an advanced multifunction device designed for environmental monitoring. Combining precision sensors and advanced technology, the device provides reliable data on a variety of parameters including temperature, humidity, carbon dioxide (CO2), illumination, Total Volatile Organic Compound (TVOC), atmospheric pressure, fine particulate matter (PM2.5 and PM10) and has a motion detection sensor. This makes it ideal for applications in industry, offices, schools, and homes where air quality is critical.



The Mondis Monitor Air Quality Family operates by continuously monitoring indoor air quality through its integrated sensors. The data collected is transmitted via LoRaWAN to the Mondis IoT platform. The E-ink display shows real-time data, providing users with immediate insights into the indoor environment. Users can configure thresholds for various parameters to receive alerts when values exceed these limits, enabling proactive management.


Device main features:

  • Simultaneous measurement of several environmental parameters;
  • Up to 2 years of operation with a replaceable battery
  • Operates in extreme temperatures from -20°C to +50°C
  • Black & White E-Ink display and Status light

Technical Specifications

Dimensions

Mini: 68 × 65 × 20.5 mm, 120g.

Advanced:  100.8 × 114 × 22 mm, 370g.

Temperature range

Mini:  0°C to 50°C

Advanced: 0°C to 50°C

CO2 range

Mini:  400 to 5000 ppm

Advanced: 400 to 5000 ppm

TVOC sensor

Mini: NA

Advanced:  1 to 5 IAQ Rating

Motion range

Mini: NA

Advanced: 80° Horizontal, 55° Vertical, 5m

LED & Buzzer

Mini:  1 × Traffic Light Status Indicator

Advanced: 1 × Traffic Light Status Indicator +1 × Buzzer

Battery

Mini:   2 × 2700 mAh ER14505 Li-SOCl2

Advanced: 4 × 2700 mAh ER14505 Li-SOCl2

Humidity range

Mini:  0% to 100% RH

Advanced:  0% to 100% RH

PM2.5 & PM10 sensor

Mini: NA

Advanced:  0-1000 µg/m³

Light sensor

Mini: NA

Advanced:  0-60000 Lux (Determine as 6 levels, 0-5)

Barometric Pressure

Mini: NA

Advanced:  260 to 1260 hPa

Battery life

Mini: up to 2 years

Advanced: up to 2 years

Use cases

  • Industry - monitoring particulate matter and chemical pollutants
  • Offices and commercial buildings - optimizing ventilation systems and maintaining comfortable conditions
  • Educational institutions and health care facilities - minimizing the risk of diseases associated with a poor indoor environment
  • Residential buildings - improving comfort and health of occupants

Why Mondis Monitor Air Quality?

Accurate data

Long battery life

Long battery life

     Provides accurate and continuous environmental data, ensuring optimal conditions;

Long battery life

Long battery life

Long battery life

  Low maintenance with a long battery life and durable design

Easy to install and implement

Easy to install and implement

Easy to install and implement

  Easily deployable in large numbers across wide areas thanks to LoRaWAN technology

Adaptive

Easy to install and implement

Easy to install and implement

    Simultaneous measurement of several environmental parameters, suitable for various applications
